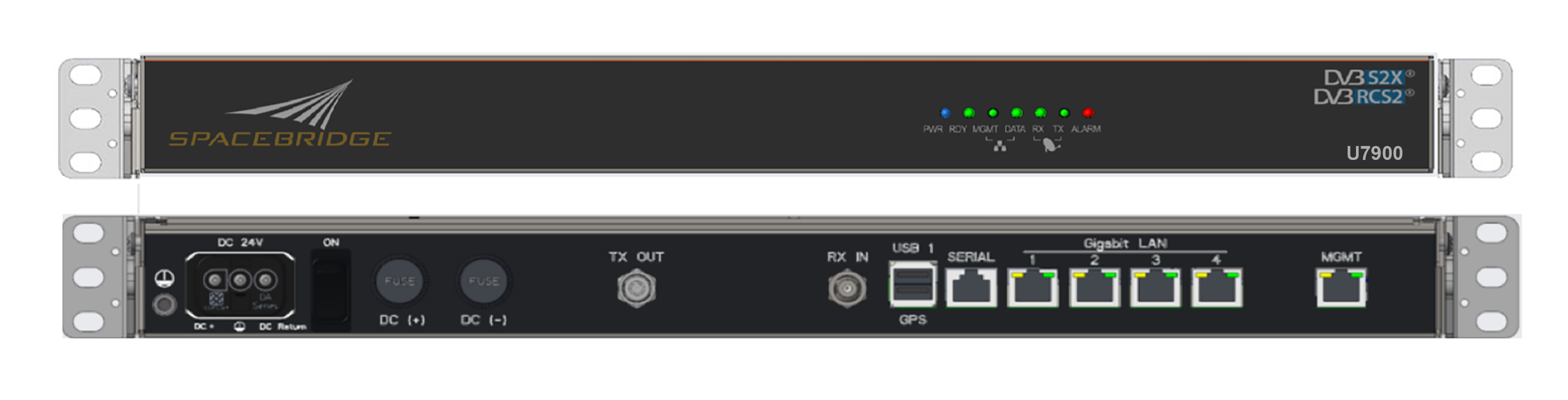

U7900 – High-Performance Networking Satellite Modem/Router

Fully compliant with the DVB-RCS2 open standard, the U7900 modem incorporates SpaceBridge’s innovative WaveSwitch™ technology, enabling error-free dynamic switching between TDMA and SCPC return-link waveforms to maximize spectral efficiency and optimize network performance under varying traffic conditions. With support for both Layer 2 and Layer 3 networking, the U7900 provides exceptional deployment flexibility for a wide range of mission-critical and commercial applications, homeland security, defense, Enterprise, Cellular Backhaul (CBH) and government communications.

The U7900 is a high-performance L2/L3 satellite modem/router delivering up to 700 Mbps downstream and 50 Mbps upstream throughput. Supporting the OpenAMIP standard and SpaceBridge’s DVB-RCS2 Annex M-compliant multi-beam mobility technology, it enables seamless beam switching and uninterrupted connectivity for maritime, land-mobile, and other mobility applications across HTS and multi-orbit satellite networks. With integrated L2/L3 optimization, the U7900 is ideally suited for VSAT-connected cellular backhaul and enterprise networks, featuring cellular traffic compression, 4G/LTE/5G GTP acceleration, and satellite optimization of IP traffic transported within VLANs and Layer 2 tunnels

• 5000MHz DVB-S2X forward link. Highest spectral efficiency via highly granular MODCODs, low roll-off rates and Adaptive Coding and Modulation (ACM)
• DVB-RCS2 TDMA return channels supporting QPSK-16 QAM and up to 5% roll-offs Dynamically selects optimal block size, and MODCODs per timeslot/per carrier, per frame interval (every 26.5msecs) to maximize spectral efficiency and throughput
• SpaceBridge WaveSwitchTM return link waveform offering equivalent to SCPC efficiency and performance, fixed latency and low jitter
• WaveSwitchTM: Hitless (error-free), dynamic switching between 3D-TDMA and dSCPC services could be accomplished every 26.5msecs
• Traffic optimization: Performance Enhancement Proxy and QoS, enhancing user experience and conserving satellite bandwidth
• Layer-3 / Layer-2 traffic and CBH optimization for easy integration with MNOs
• Cellular backhaul and enterprise traffic optimization – ideal for 2.5G/3G/4G and LTE/5G
• Optional : Cellular traffic decryption/encryption

• True broadband capabilities for L2 applications ranging from SMB office productivity to rural communities connectivity
• Enterprise and mission-critical connectivity
• 2G, 3G, 4G and LTE/5G rural Cellular Backhaul links
• Critical communications satellite-as-backup links
