IPS-100 Disciplined Time Reference / NTP Server
Product Overview
The IPS-100 combines precision timing generation with integrated networking capabilities, enabling seamless deployment in modern synchronization environments. Its hybrid architecture eliminates the need for external timing distribution hardware, simplifying system design and reducing operational complexity.
Contact us product
- Benefits
- Features
- Applications and Uses
The IPS-100 is a high-precision time and frequency reference system designed to deliver reliable synchronization across a wide range of critical applications, including:
• Satellite communications (DVB-RCS / DVB-RCS2)
• Digital radio and broadcast (DVB-T / DVB-T2)
• 5G and cellular base stations
• Synchronous Ethernet networks
Leveraging advanced disciplining algorithms, the IPS-100 meets stringent requirements for frequency stability and absolute time accuracy, ensuring continuous and dependable network synchronization.
Optimized for DVB-RCS2 platforms, the IPS-100 distributes a platform-wide NCR/PCR clock, synchronizing all remote terminals to a unified system reference. This results in improved network efficiency, enhanced robustness, and reduced timing drift across the VSAT infrastructure.
- High-stability Stratum 2 10 MHz reference
- Holdover stability: ±1 × 10⁻¹⁰ per day

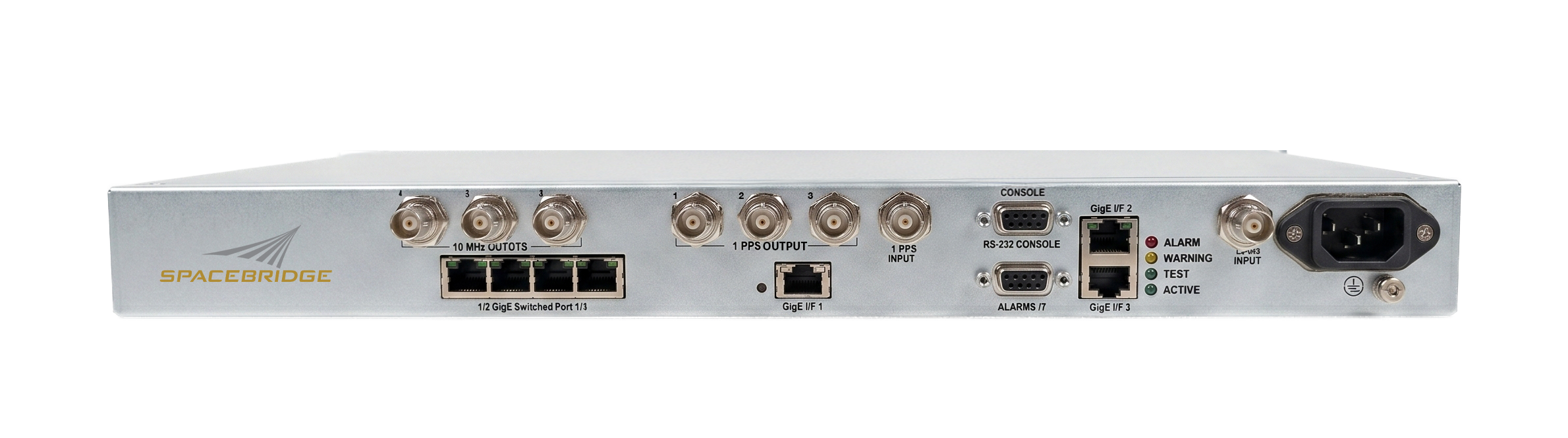

- 3 isolated 1PPS outputs
- 3 isolated low phase-noise 10 MHz outputs
- Integrated 4-port Layer 2 switch
- Integrated 3-port Layer 3 router
- Remote management via GUI and SNMP
- RS-232 console and dedicated Ethernet management port
- Compact 1U 19” rack-mount chassis

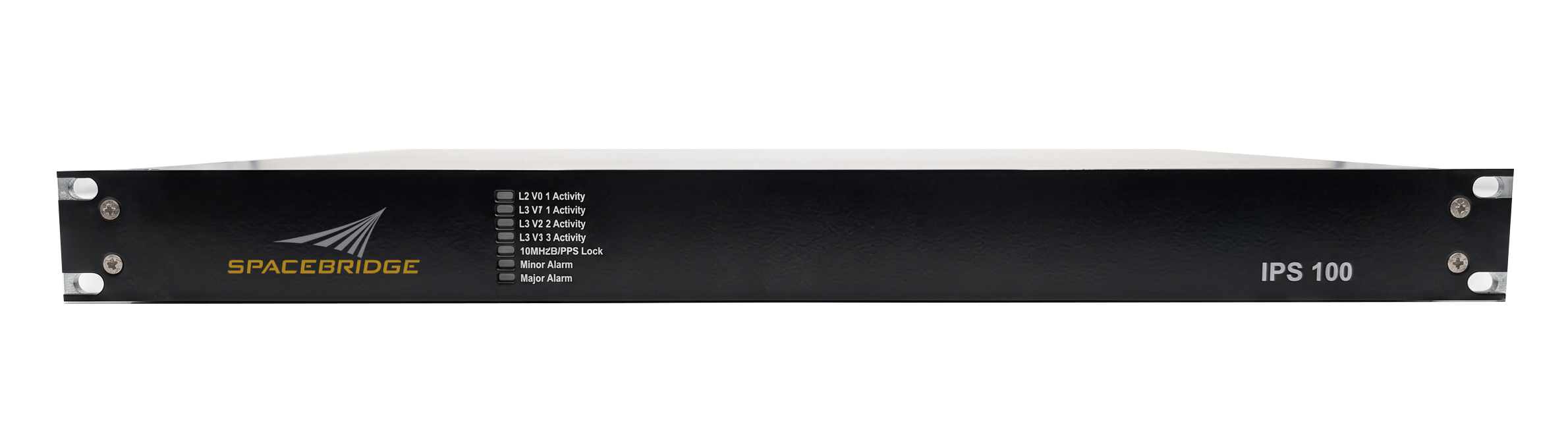

- Front-panel LED status and alarm indicators
- VSAT and satellite ground systems
- Broadcast transmission networks
- Mobile and 5G infrastructure
- Financial and data center timing
- Critical infrastructure synchronization
